ProSecure Unified Threat Management (UTM) Appliance Reference Manual
Virtual Private Networking Using SSL Connections 8-9
v1.0, January 2010

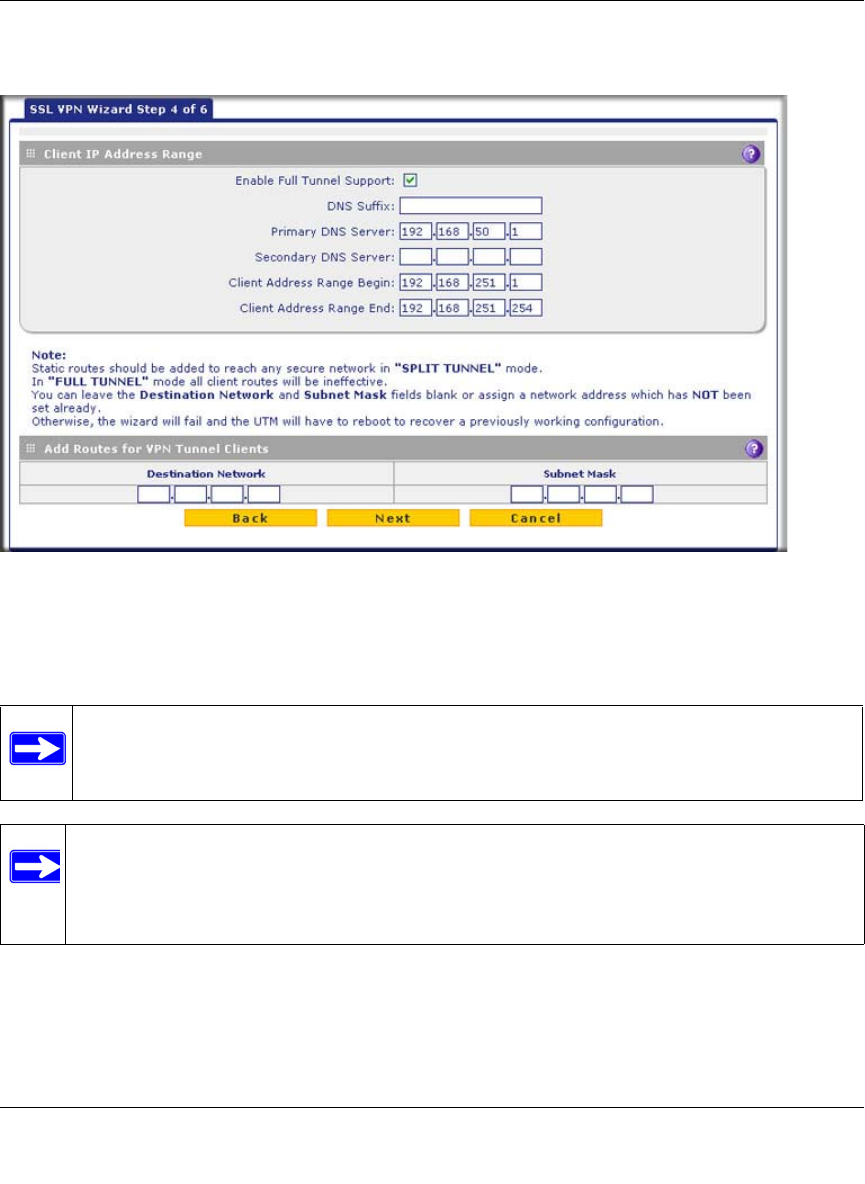

SSL VPN Wizard Step 4 of 6: Client IP Address Range and Routes
Note that Figure 8-5 contains some examples. Enter the settings as explained in Table 8-4 on
page 8-10, then click Next to go the following screen.
Figure 8-5
Note: Do not enter an existing route for a VPN tunnel client in the Destination Network
and Subnet Mask fields, otherwise the SSL VPN Wizard will fail and the UTM
will reboot to recover its configuration.
Note: After you have completed the steps in the SSL VPN Wizard, you can make changes
to the client IP address range and routes by selecting VPN > SSL VPN > SSL
VPN Client. For more information about client IP address range and routes
settings, see “Configuring the SSL VPN Client” on page 8-25.
