ProSecure Unified Threat Management (UTM) Appliance Reference Manual
LAN Configuration 4-19
v1.0, January 2010
To enable and configure the DMZ port:
1. Select Network Config > DMZ Setup from the menu. The DMZ Setup screen displays.
2. Enter the settings as explained in Table 4-3 on page 4-20.

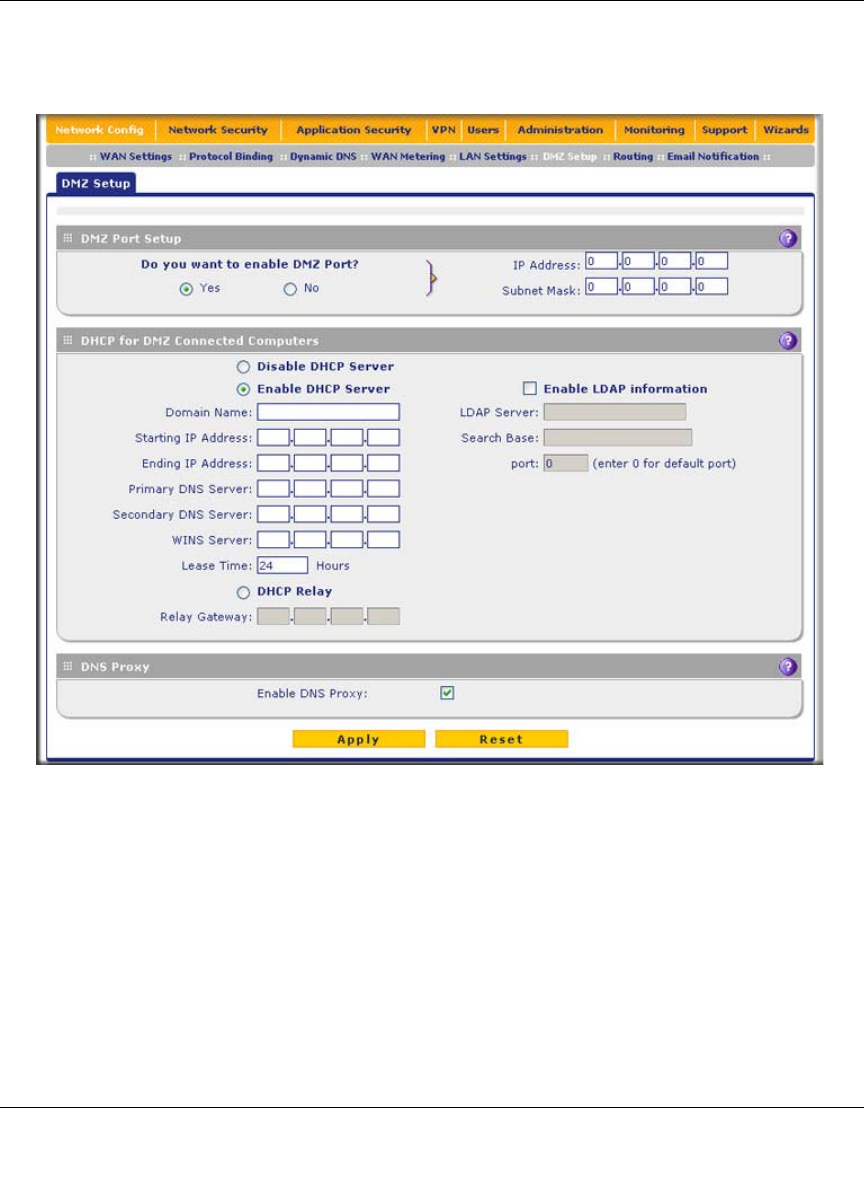

Figure 4-8
