ProSecure Unified Threat Management (UTM) Appliance Reference Manual
11-28 Monitoring System Access and Performance
v1.0, January 2010

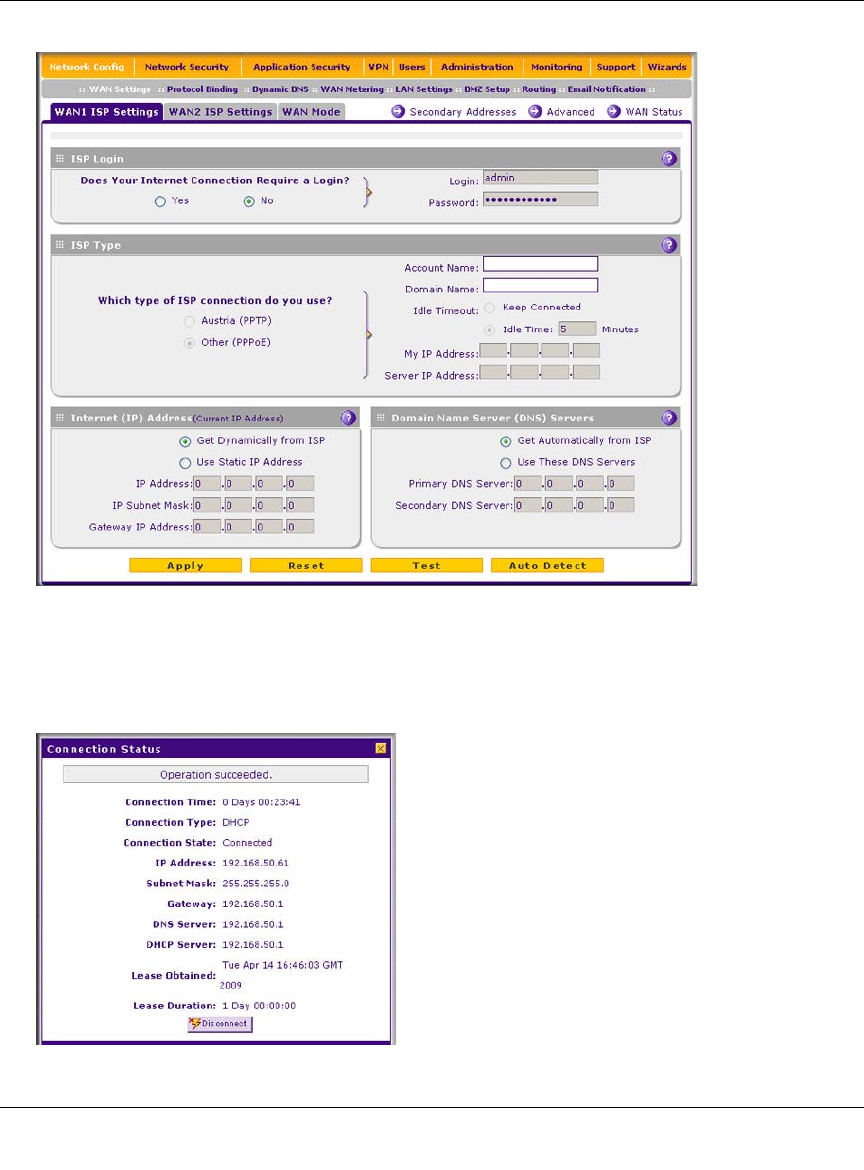

2. Click the WAN Status option arrow at the top right of the WAN1 ISP Settings screen (dual-
WAN port models) or WAN1 ISP Settings screen (single-WAN port models). The Connection
Status screen appears in a popup window.
Figure 11-18
Figure 11-19
