ProSecure Unified Threat Management (UTM) Appliance Reference Manual
5-26 Firewall Protection
v1.0, January 2010
Outbound Rules Example
Outbound rules let you prevent users from using applications such as Instant Messenger, Real
Audio, or other non-essential sites.
LAN WAN Outbound Rule: Blocking Instant Messenger
If you want to block Instant Messenger usage by employees during working hours, you can create
an outbound rule to block that application from any internal IP address to any external address
according to the schedule that you have created in the Schedule menu. See an example in
Figure 5-15 on page 5-27.
You can also enable the UTM log any attempt to use Instant Messenger during that blocked period.
Figure 5-14

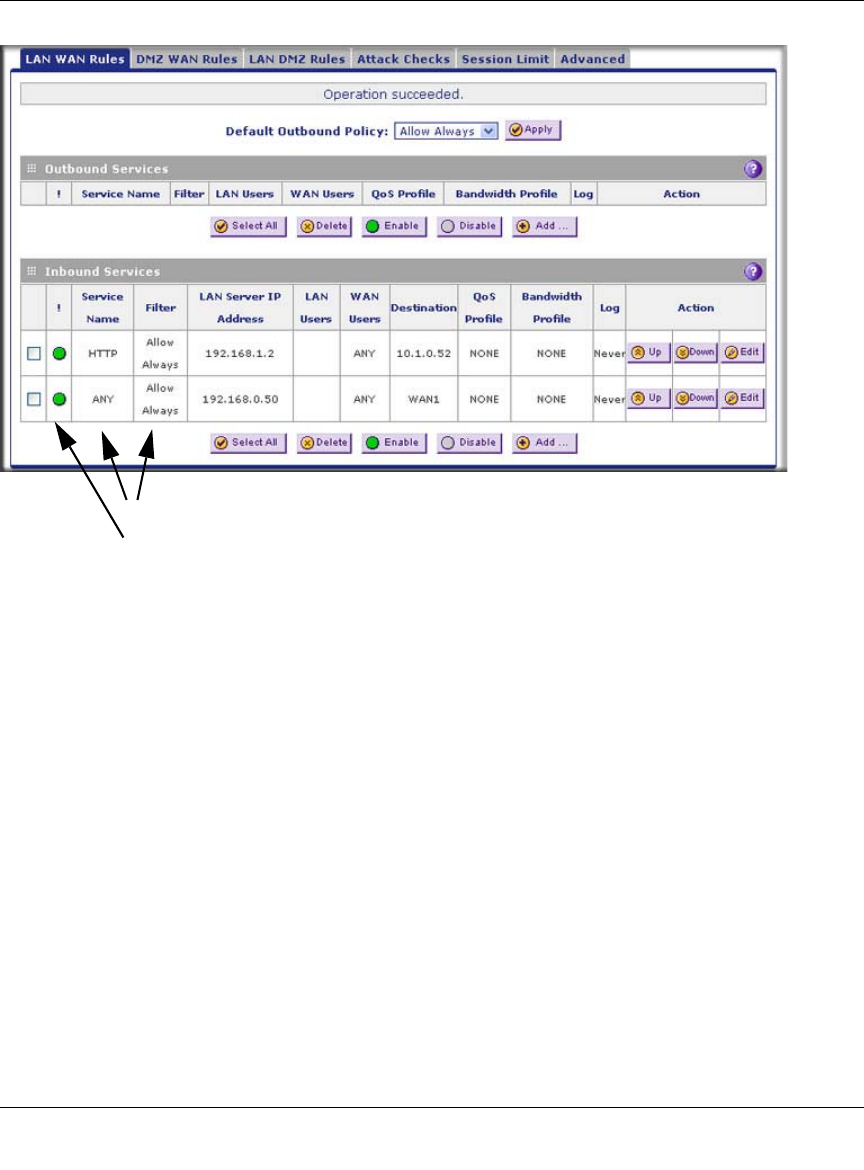

1. Select Any and Allow Always (or Allow by Schedule).
2. Place the rule below all other inbound rules.
