ProSecure Unified Threat Management (UTM) Appliance Reference Manual
LAN Configuration 4-23
v1.0, January 2010
Configuring Static Routes
To add a static route to the Static Route table:
1. Select Network Config > Routing from the menu. The Routing screen displays.
2. Click the Add table button under the Static Routes table. The Add Static Route screen
displays.

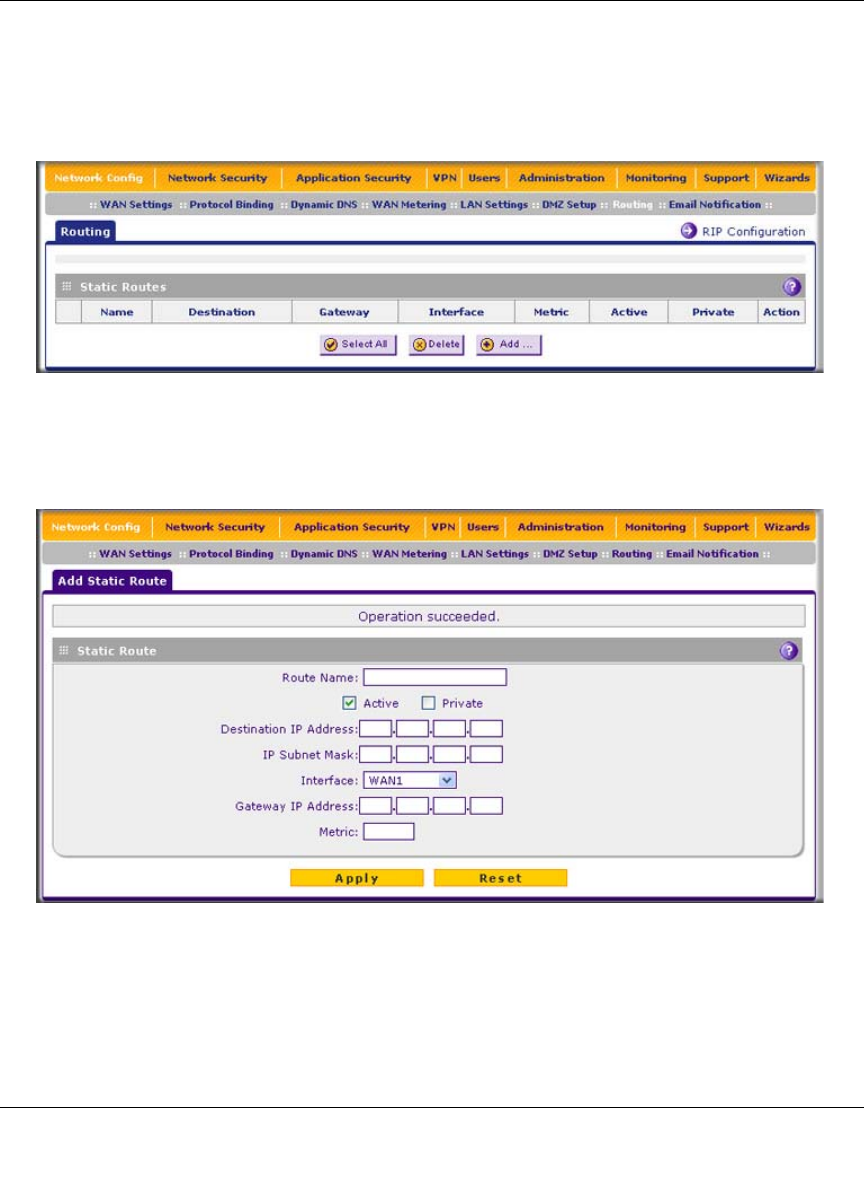

Figure 4-9
Figure 4-10
