ProSecure Unified Threat Management (UTM) Appliance Reference Manual
5-30 Firewall Protection
v1.0, January 2010
Setting Session Limits
Session limits allows you to specify the total number of sessions that are allowed, per user, over an
IP connection across the UTM. The Session Limit feature is disabled by default.
To enable and configure the Session Limit feature:
1. Select Network Security > Firewall from the menu. The Firewall submenu tabs appear.
2. Click the Session Limit submenu tab. The Session Limit screen displays.
3. Click the Yes radio button under Do you want to enable Session Limit?
4. Enter the settings as explained in Table 5-5 on page 5-31.

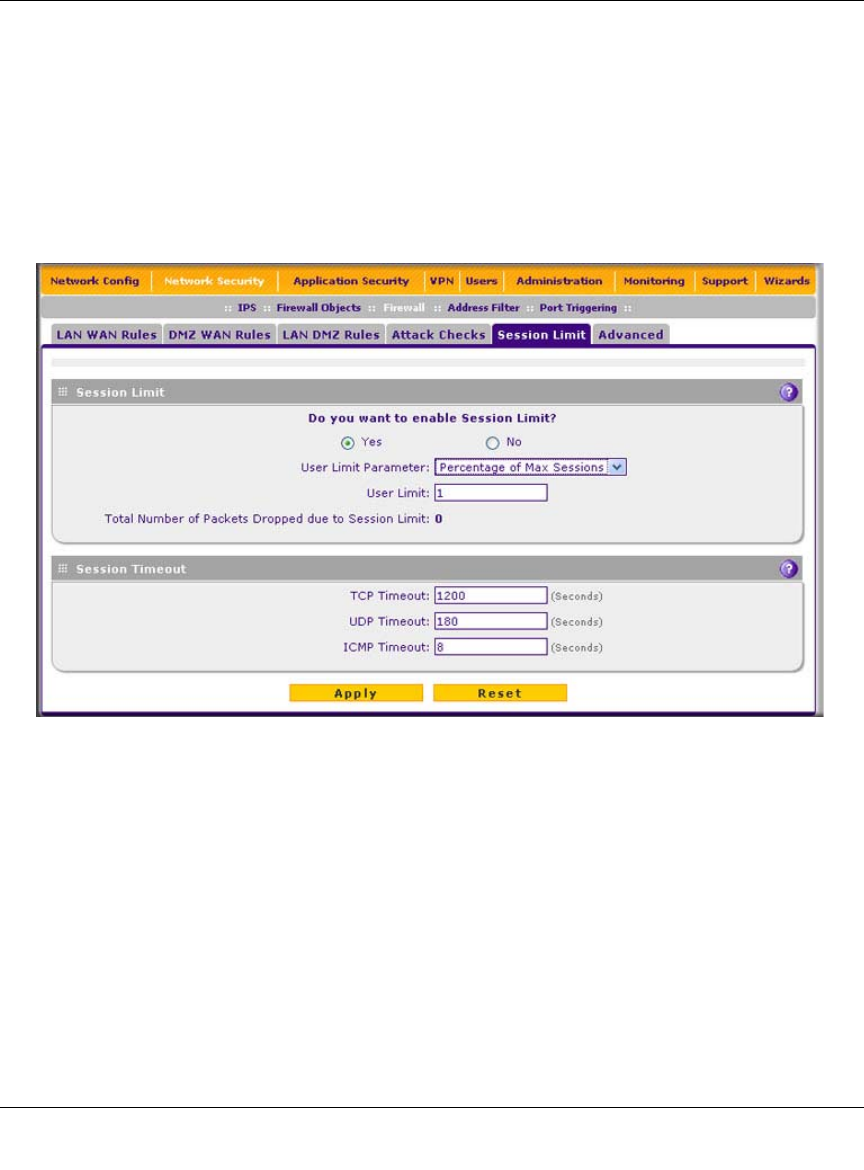

Figure 5-17
